Black Rubber Belting Idler Roller Flat Belt Conveyor For Bulk Material
Feature of Flat Belt Conveyor
1, Easy loading and unloading. The belt conveyor can be loaded and unloaded at any point according to the needs of the process.
2, High reliability.
3, Strong adaptability to the line. The conveying line can be horizontal or inclined, or it can be bent horizontally or vertically, so it is less restricted by terrain conditions.
4, the belt conveyor also features low capital investment, low operating costs, high efficiency and low energy consumption.
Application of Flat Belt Conveyor
The Flat Belt Conveyor is mainly composed of the following components: head frame, driving device, transmission roller, tail frame, idler, intermediate frame, tail redirection device, unloading device, cleaning device, safety protection device, etc. Because of the variety and wide specifications of belt conveyors, Idler Roller Conveyor can be applied to the logistics and transportation requirements of building materials, chemical, light industry, post and telecommunications and many other departments;
Technical Parameters of Flat Belt Conveyor
| Belt Width | Section Form | Speed | Capacity |
| 650mm | Though | 0.8m/s | 131t/h |
| 1.0m/s | 164t/h |
| 1.25m/s | 206t/h |
| 1.6m/s | 264t/h |
| 2.0m/s | 323t/h |
| Flat | 0.8m/s | 67t/h |
| 1.0m/s | 88t/h |
| 1.25m/s | 110t/h |
| 1.6m/s | 142t/h |
| 2.0m/s | 172t/h |
Selection Conditions of Idler Roller Conveyor
-
Handling capacity:_____
-
Material to be processed: _____
-
Bulk Density: _____t/m3
-
Material temperature: _____℃
-
Water content:____%
-
Material is corrosive or not: ____
-
Material is sticky or not: ____
-
Working environment temperature: ______ ℃
-
Working voltage:____V_____hz_____phase
Product Tags:
|
|

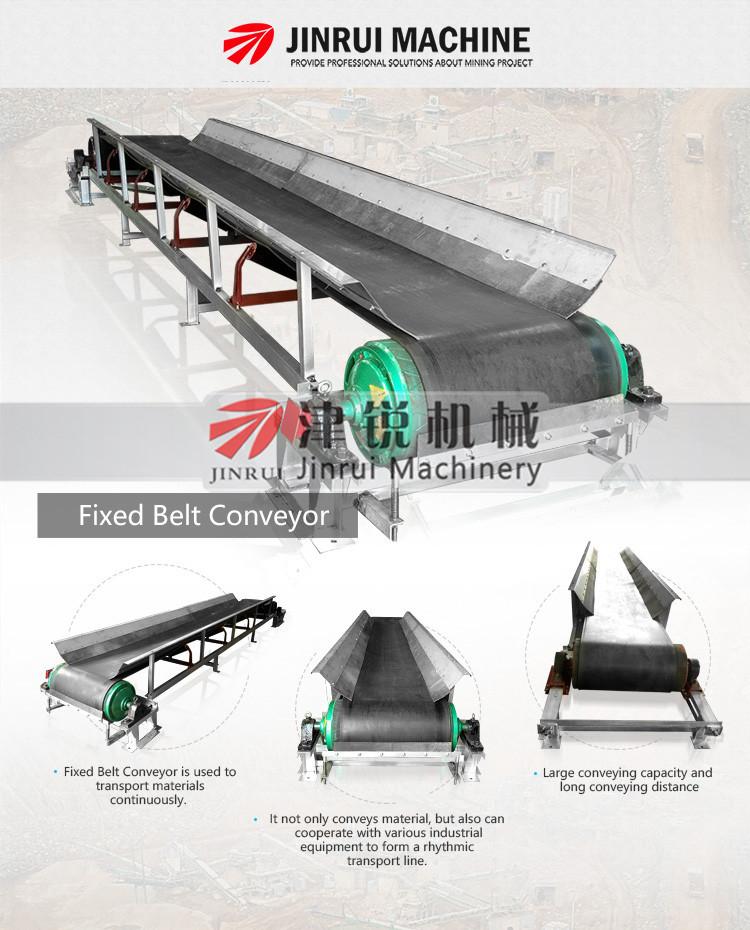

Black Rubber Belting Idler Roller Flat Belt Conveyor For Bulk Material Images
|
